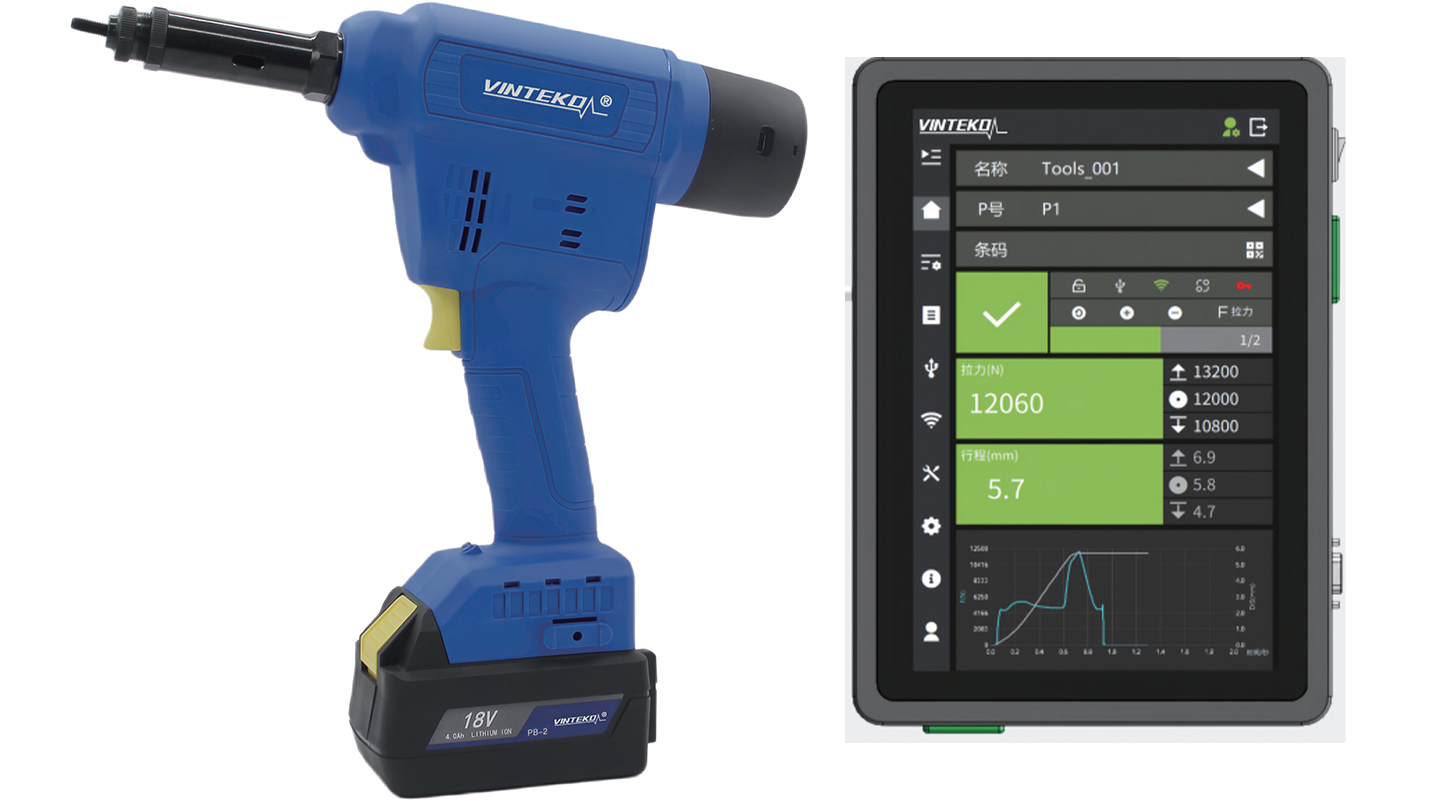

BSH-28 Smart Lithium Rivet Gun

The cordless lithium battery rivet gun features real-time data and curve display, with a maximum pulling force of up to 28KN. It's suitable for M4–M10 rivet nuts, rivet studs, and sealing plugs, and is used in various sheet metal assembly scenarios like cars, gearboxes, and rail transit.

Dual Sensor System

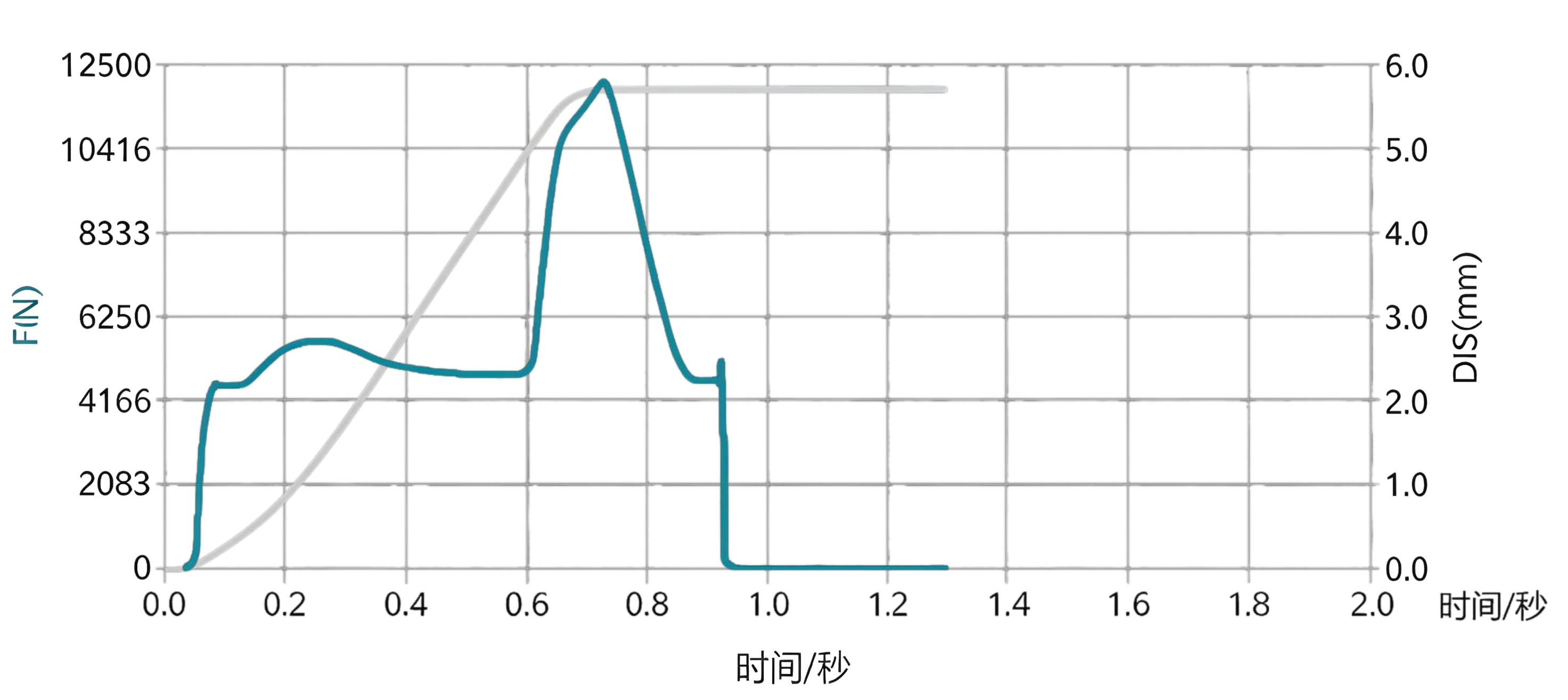

Real-time feedback on force and displacement

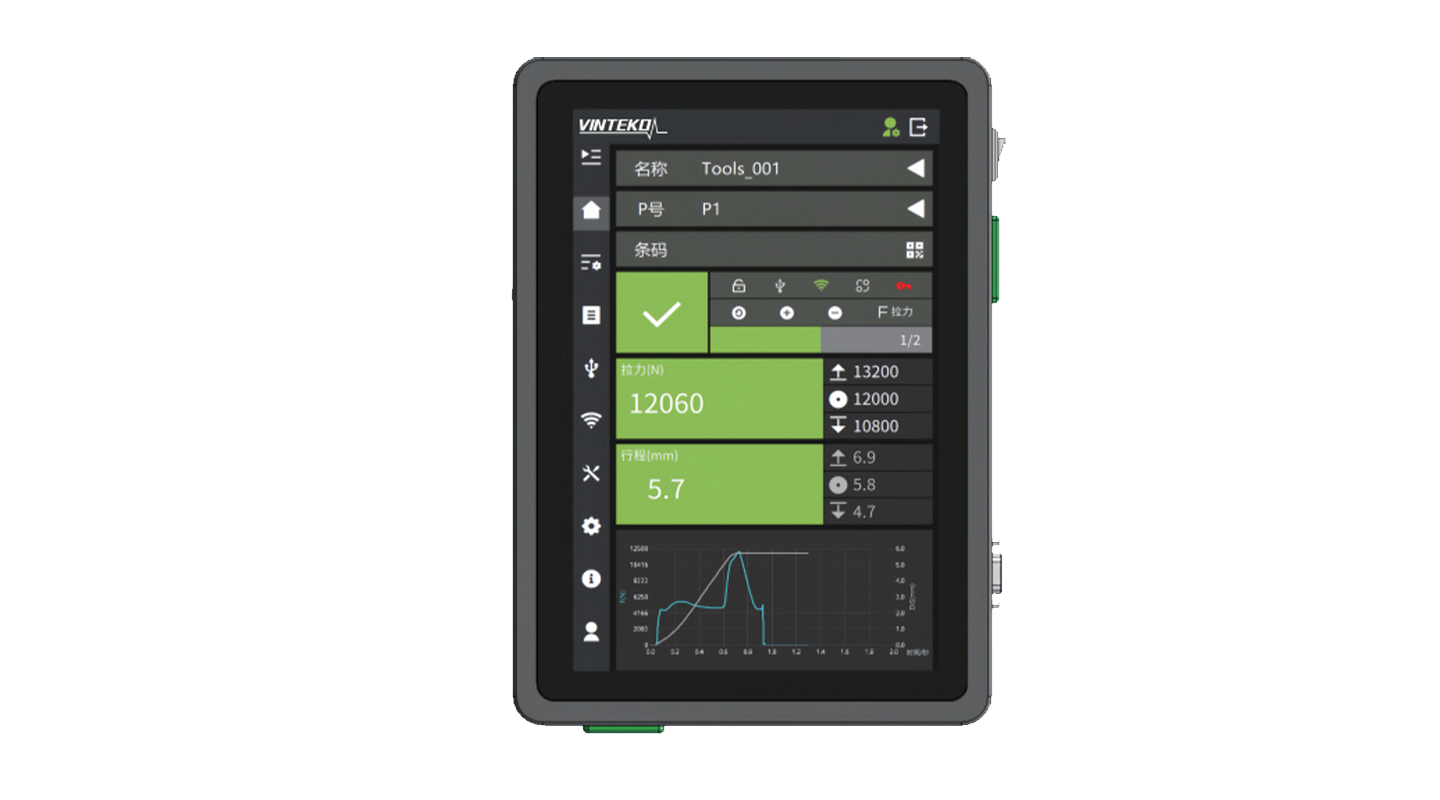

Smart Display System

Shows pulling force, stroke, operation stats, and judgment results in real time

Error Prevention System

Features leak-proof riveting, mistake-proof riveting, and automatic counting

Data Management

A single machine can store 50,000 riveting data entries ...

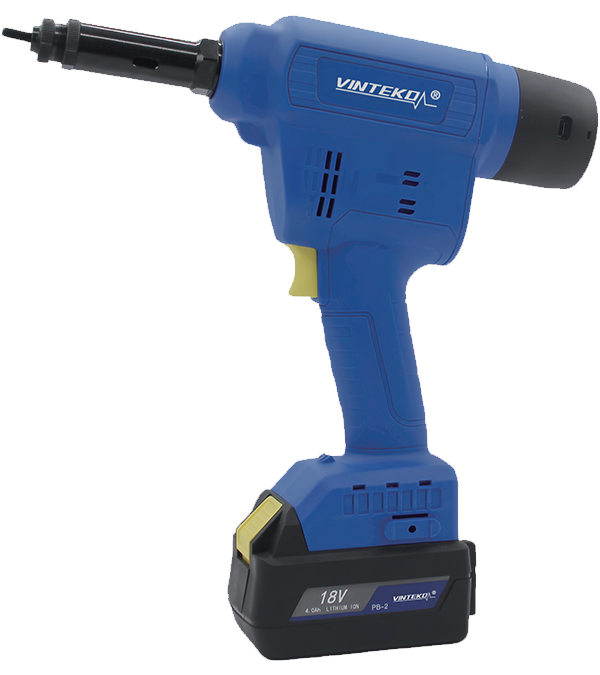

BSH-28 Smart Lithium Rivet Gun

Precise dual-sensor control of force and stroke, with a color screen showing work status in real time; anti-leak and error-proof counting ensures quality. Stores up to 50,000 data entries locally, easy USB export, Wi-Fi direct connection to DDC for curve evaluation; self-learning automatic parameter adaptation; supports multi-gun coordination and Modbus protocol, meeting factory traceability and smart closed-loop management.

High repeatability

The combined effect of precision mechanical closed-loop control, intelligent algorithm adaptive compensation, and strict data verification ensures it.

More accurate force and displacement

Dual-sensor closed-loop regulation improves both tension and stroke accuracy, making high-quality blind riveting more reliable.

Low noise

The motor runs smoothly, and the mechanical transmission is gentle, making the noise better than similar products on the market.

Data Management

A single machine can store 50,000 riveting data entries ..

Fast wireless transmission

Transmission speed is 50% faster than traditional wireless modules, and control latency is noticeably reduced.

Maintenance-Free

Maintenance-free structural design saves the cost of regular inspections and upkeep.

BSH-DOC200 Wireless Controller

Centralized control of multiple guns, with parameters synced all at once

One machine can pair with multiple rivet guns, with parameters set remotely at the push of a button, giving you both precision and flexibility, helping your production line upgrade intelligently. The high-resolution adjustment module ensures each gun follows the same standard, with rivet stroke and pressure precisely controllable, excellent repeat positioning consistency, and no chance of human error.

500,000 Group

Data storage capacity

4 PC

Number of simultaneous jobs

10 M

Communication range
