| Parameters | Unit | Specification Model |
|---|---|---|
| Range | T | 0-20 |
| Output Sensitivity | mV/V | <2.0> |
| Output Sensitivity | %F.S | ±0.5 |
| Repeatability | %F.S | ±0.5 |
| Temperature Sensitivity Drift | %F.S./10℃ | 0.05 |
| Zero Point Temperature Drift | %F.S./10℃ | 0.05 |
| Voltage | V | 5-15 |
| Material | Stainless steel | |
| Operating Environment | ℃ | -20-65 |
| Response Frequency | KHZ | 1 |
| Safe Overload | % | 150 |
| Ultimate Overload | % | 300 |
| Cable Specifications | θ5*2M | |
| Protection Level | IP65 |

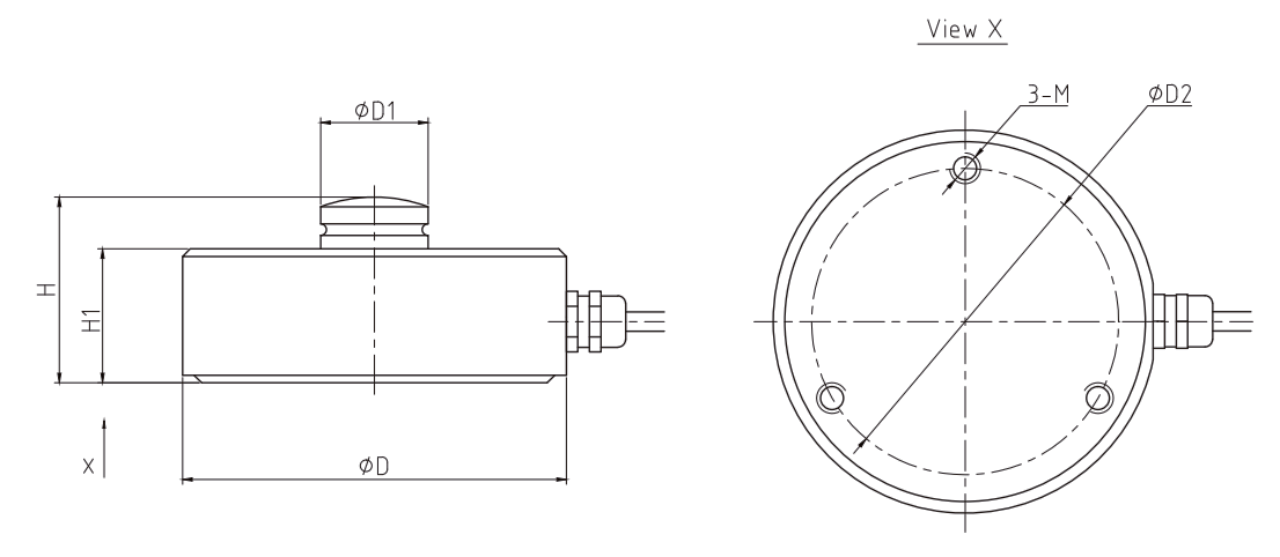

| Model | Specifications | θD | θD1 | θD2 | H | H1 | M |
|---|---|---|---|---|---|---|---|
| VK-VPS7-2.5 | 0.25-2.5T | 82 | 22 | 65 | 44 | 32 | M6*1.0 |
| VK-VPS7-5 | 0.5-5T | 82 | 22 | 65 | 44 | 32 | M6*1.0 |
| VK-VPS7-10 | 1-10T | 82 | 22 | 65 | 44 | 32 | M6*1.0 |
| VK-VPS7-15 | 1.5-15T | 100 | 28 | 88 | 48.5 | 35 | M8*1.25 |
| VK-VPS7-20 | 2-20T | 100 | 28 | 88 | 48.5 | 35 | M8*1.25 |
