| Parameters | Unit | Technical Specifications |
|---|---|---|
| Rated range | KG | 0-5000 |
| Output sensitivity | mV/V | 1.0-2.0 |
| Zero output | %F.S | ±1 |
| Nonlinearity | %F.S | 0.3 |
| Hysteresis | %F.S | 0.3 |
| Repeatability | %F.S | 0.3 |
| Temperature sensitivity drift | %F.S./10℃ | 0.3 |
| Zero point temperature drift | %F.S./10℃ | 0.3 |
| Response frequency | V | 5-10 |
| Material | Stainless steel | |
| Operating voltage | ℃ | -20-80 |
Operating temperature rang | KHz | 10 |
| Safe overload | %R.C. | 150 |
| Ultimate overload | %R.C. | 200 |
| Cable specifications | m | Φ3*2m / 10T：Φ5*2m |
| Cable ultimate tensile strength | KG | 10 |

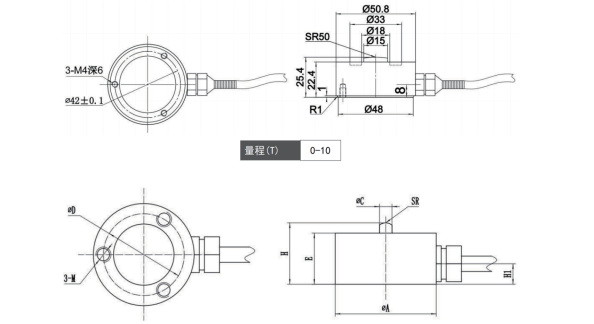

| Model | Specifications | θA | θC | θD | H | E | M | H1 | S |
|---|---|---|---|---|---|---|---|---|---|
| VK-VPS9-10 | 10-100KG | 20 | 2.5 | 15.5 | 12 | 10 | M13 | 4 | 2 |
| VK-VPS9-20 | 20-200KG | 20 | 2.5 | 15.5 | 12 | 10 | M13 | 4 | 2 |
| VK-VPS9-30 | 30-300KG | 26 | 5 | 18.5 | 15 | 11.5 | M4 | 5 | 6 |
| VK-VPS9-50 | 50-500KG | 26 | 5 | 18.5 | 15 | 11.5 | M4 | 5 | 6 |
| VK-VPS9-100 | 100-1000KG | 37.7 | 10.8 | 31 | 15.5 | 14 | M2.5 | 4 | 50 |
| VK-VPS9-200 | 200-2000KG | 37.7 | 10.8 | 31 | 15.5 | 14 | M2.5 | 4 | 50 |
| VK-VPS9-300 | 300-3000KG | 37.7 | 10.8 | 31 | 15.5 | 14 | M2.5 | 4 | 50 |
| VK-VPS9-500 | 500-5000KG | 37.7 | 10.8 | 31 | 15.5 | 14 | M2.5 | 4 | 50 |
