BSU26-N

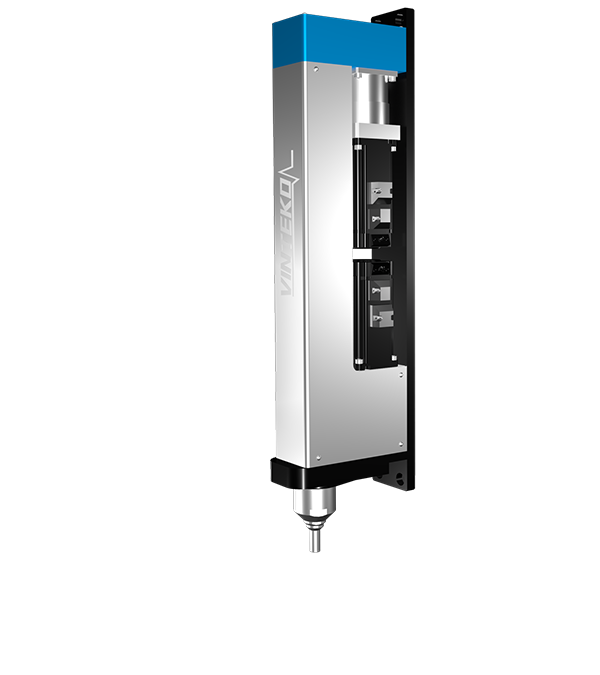

Narrow Distance Inserting Unit for Blind Rivet Nuts and Bolts

BSU26-N is for joinning blind rivet nuts and bolts fully automatically in industrial applications. Thanks to the process control and auto feed systems, BSU26-N with maximum process reliability that make production processes more efficient.

BSU26-N<br />Narrow Distance Inserting Unit for Blind Rivet Nuts and Bolts

Reliable Automation

Cycle times at least 7s possible

QPM Function

Quick positioning method

Low Spare Parts

Usecommercially available standard screw

Stable Process

Stable process in any working direction

Standard Riveting Process

Maximum Dynamic | Best performance

Servo Control Platform
Servo control technology with core algorithm patents, which can achieve best performance with high precision and fast response

WIN-WIN COOPERATION

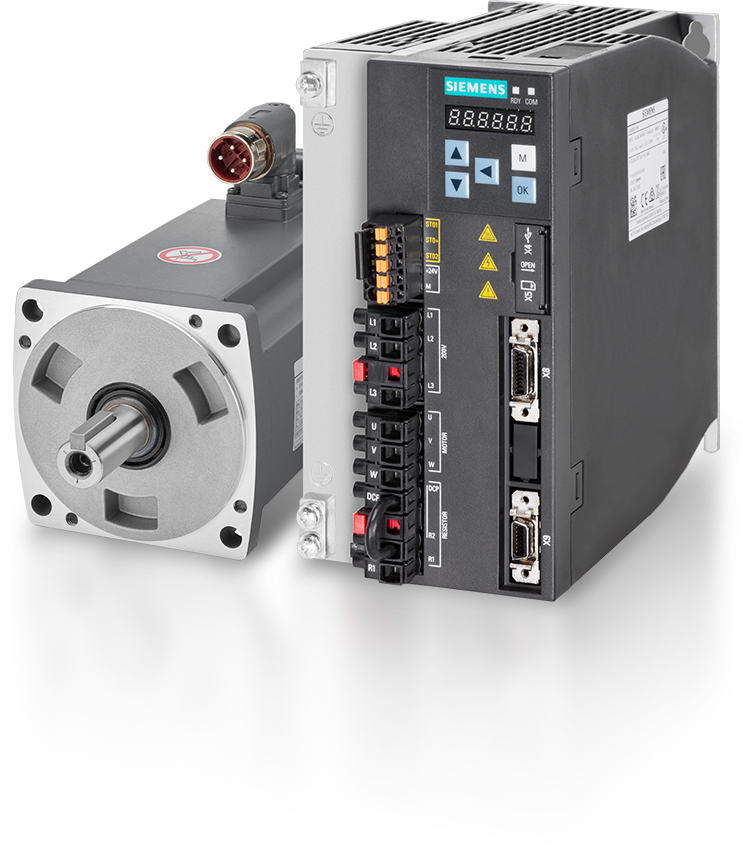

SIEMENS provides the optimized servo drive solution for motion control applications

SAFETY

Powerful safety concept

Integrated safety functions: STO SIL2, Brake func

Certifications:CE, EAC, RCM......

PRECISE

Due to fast data transfer and with a resolution of up to 21 bits for the encoder

SYSTEM-BASED

Rapid acceleration and braking, with smooth operation in order to ensure high machine productivity

Special design for narrow distance

BSU26-N is designed with ultra-narrow spacing
enabling a compact nut arrangement that makes full automation feasible for customer products with high cycle time requirements

Collaboration.Efficient. Innovative.

The system can be used in a stationary setting, in transfer systems, rotary table systems or robot systems.
The blind rivet nuts are singulated in a feeder system as bulk materials and automatically fed into the correct position via a flexible feed hose in relation to the setting unit.

26 kN

Maximum drawing force

7 S

Cycle times at least possible

10 S

Drawing tool can be changed within 10s

Processable blind rivet nuts M4 ~ M12

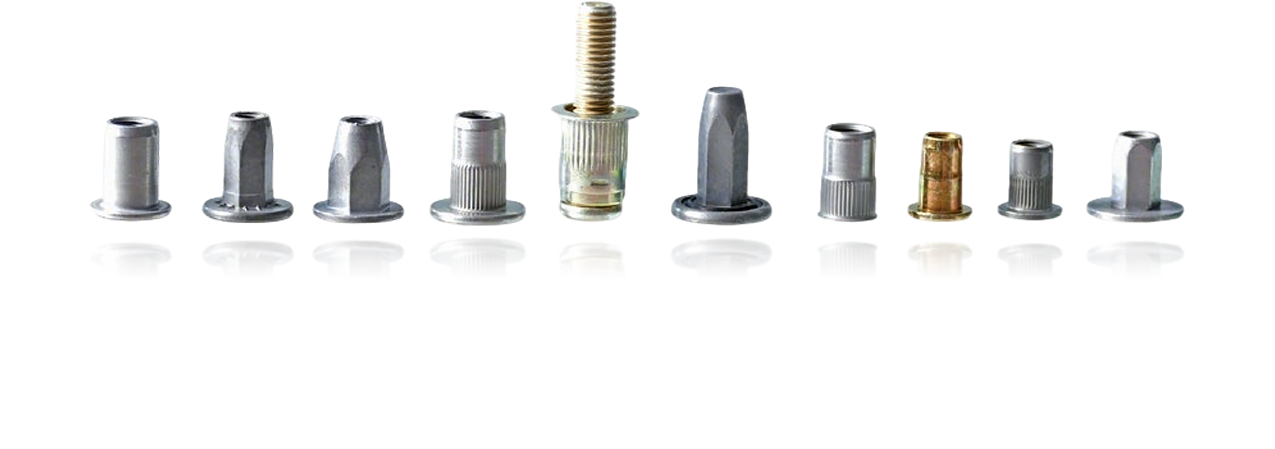

Possible Different Types of Nuts and Bolts

The drawing tool can be changed within 10 seconds without any auxiliary tools By replacing different riveting tools, achieve compatibility with various nuts and bolts
