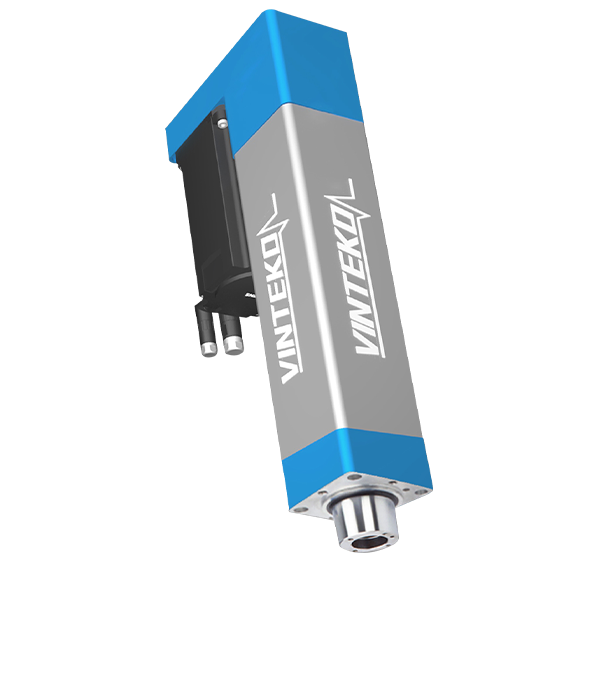

YJ Series
The Best Choice for Press-fit

Regardless of whether they are used for transmission and engine assembly or for the assembly of wheel carrier, wheel set and chassis，YJ series, with its excellent reliability and stability, helps our customers improve economic efficiency in the field of cutting-edge product assembly thanks to optimized.

YJ Series <br />The Best Choice for Press-fit

Pressure Accuracy

Control accuracy: ±0.5% F.S

Positioning Accuracy

Repeat positioning accuracy: ±0.01mm

Rich Interface

ProfiNet，EtherNet/IP, EtherCAT...

Long Lifespan

Designed lifespan： 10 million cycles

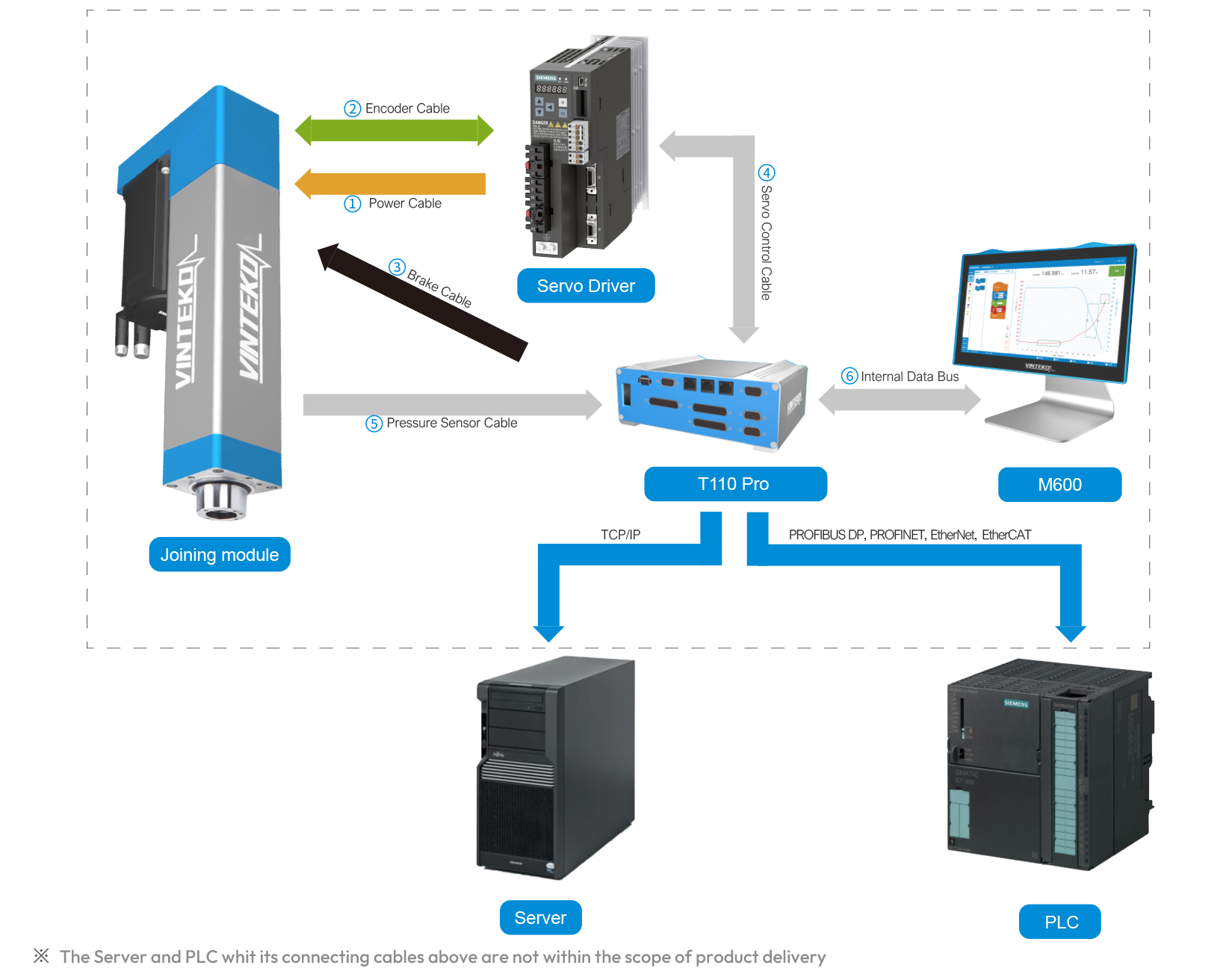

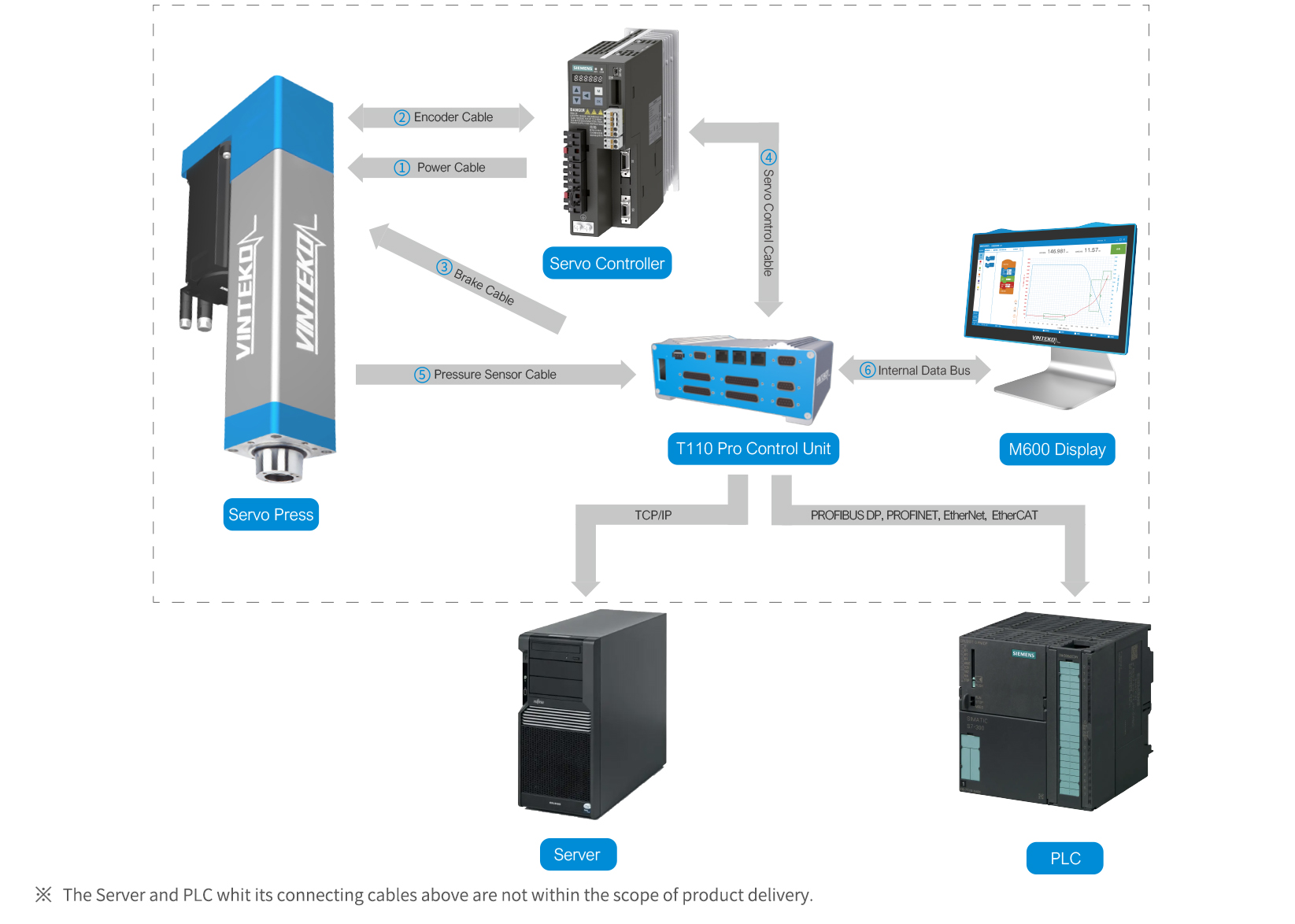

Functional Principle

Maximum Dynamic | Best performance

Servo Control Platform
Servo control technology with core algorithm patents, which can achieve best performance with high precision and fast response

WIN-WIN COOPERATION

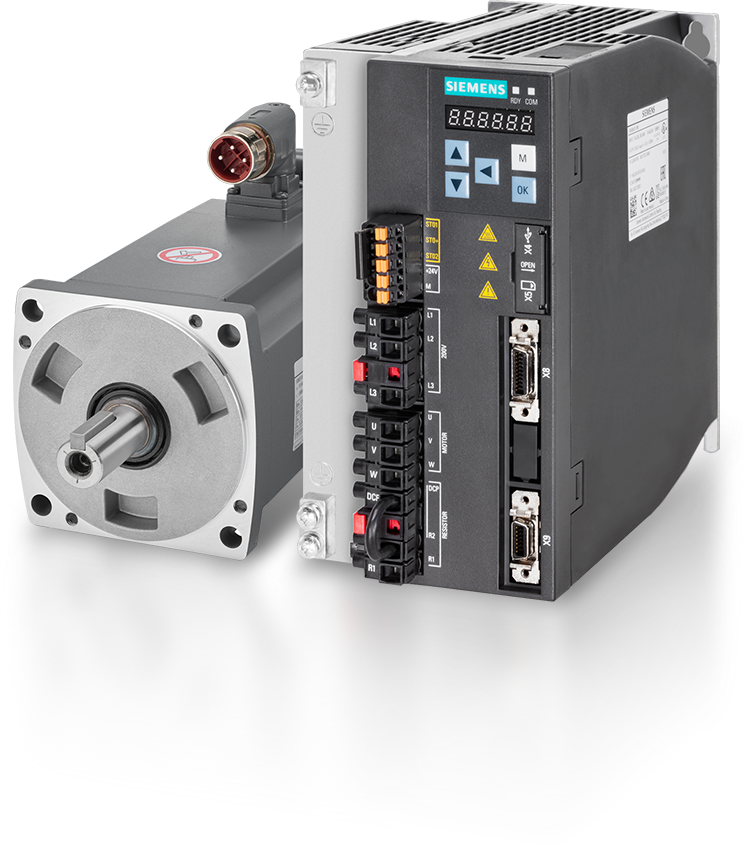

SIEMENS provides the optimized servo drive solution for motion control applications

SAFETY

Powerful safety concept

Integrated safety functions: STO SIL2, Brake func

Certifications:CE, EAC, RCM......

PRECISE

Due to fast data transfer and with a resolution of up to 21 bits for the encoder

SYSTEM-BASED

Rapid acceleration and braking, with smooth operation in order to ensure high machine productivity

Reduce Training Investment and Improve Work Efficiency

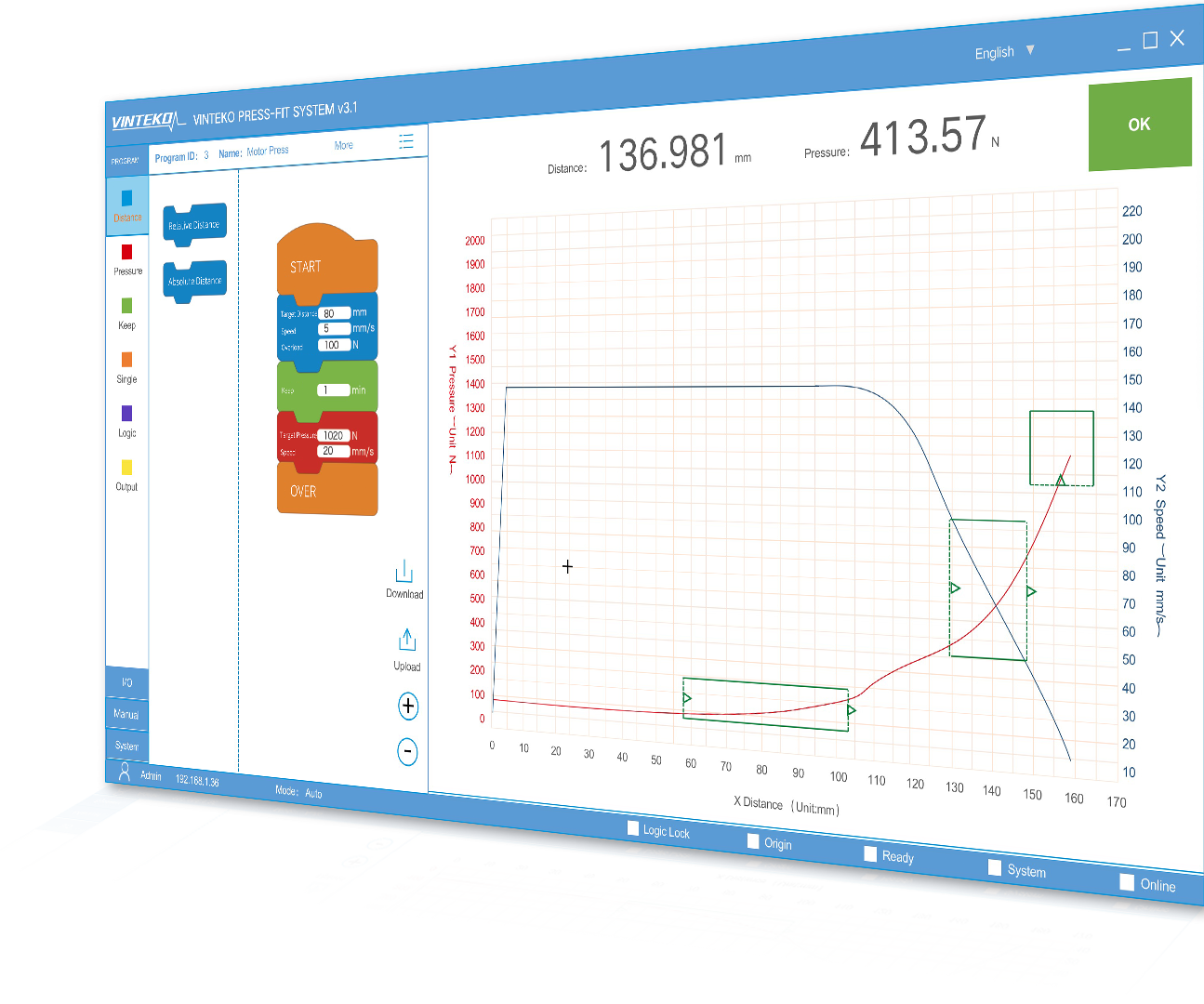

Blockly - An Innovative Process Edit Mode
Whether you are a process engineer, equipment maintenance personnel or quality management personnel, can quickly grasp the interactive methods of your process

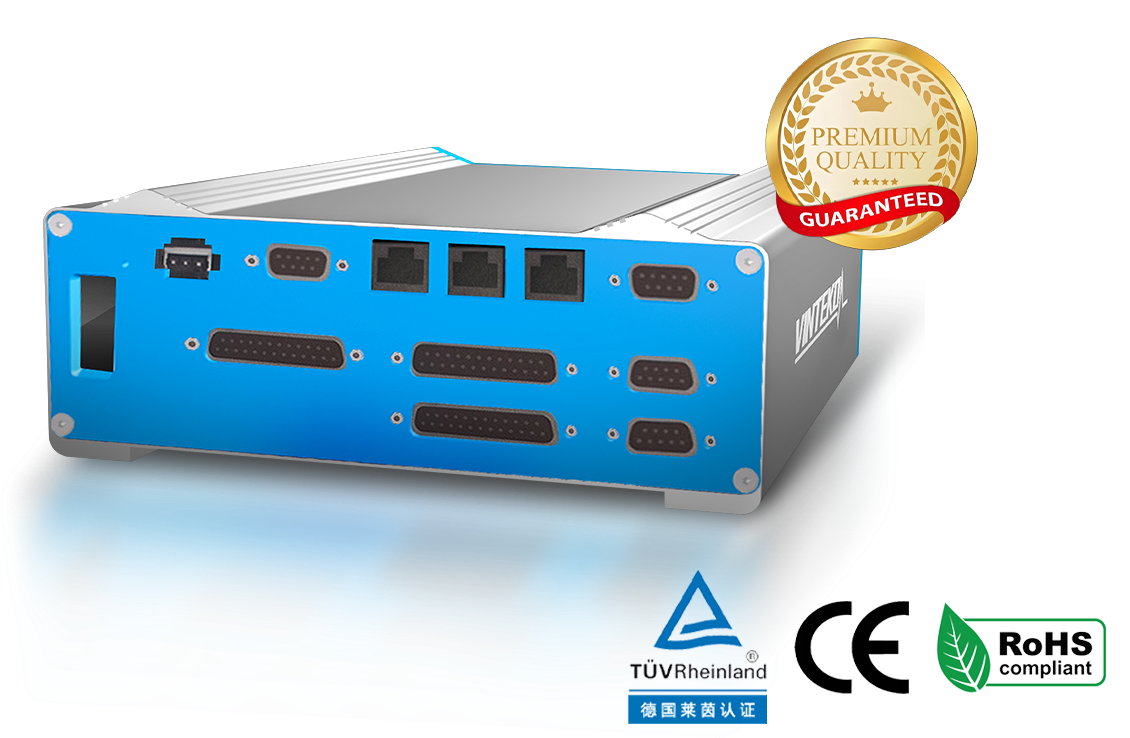

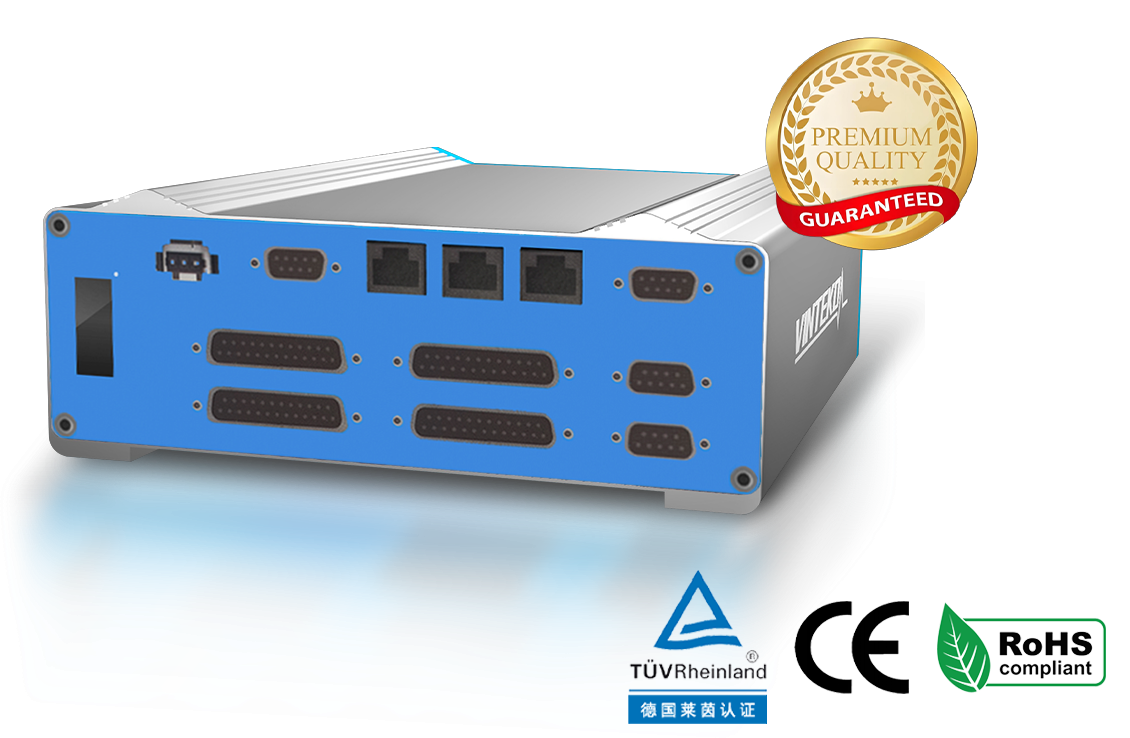

T110 Pro
Core Element of Measuring and Control

As the core element of the whole system, the T110 pro monitors and controls the entire process.
Built in patented core control algorithms,the system offers exceptional usability and an outstanding degree of flexibility making it suitable for process ranging from simple to highly complex.

20,000 Hz

Sampling Frequency

0.0002 s

Response Time

1,200,000

Curve Storage Capacity

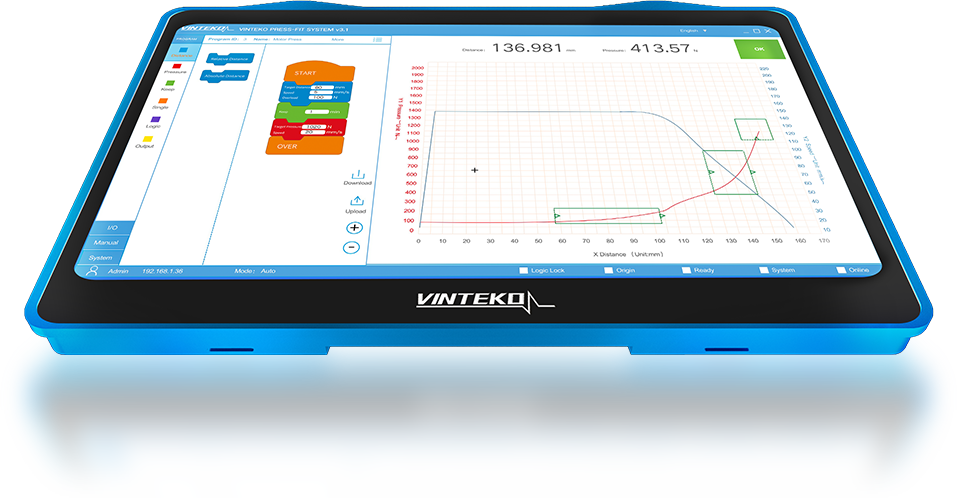

M600 Monitor

Your Best Assistant To Communicate With VINTEKO’s Devices

M600 monitor controls, monitors, evaluates curves for whole processes together with T110/T110 pro, Human-computer interaction can be made simpler by built-in software.

13.3inch

Integrated Evaluation Windows

VINTEKO control system introduces the concept of process evaluation windows, which contain more than 60 types of evaluation windows, to more accurately control the direction of the process curve, ensure the process accurately and effectively control the consistency of product assembly.

Total

60 +

Types of evaluation windows

SOFTWARE INTERFACE
