| Parameter range | Unit | Specification model |
|---|---|---|
| Linear stroke | mm | 50-1250 |
| Independent linearity | ±% | 0.1-0.04 |

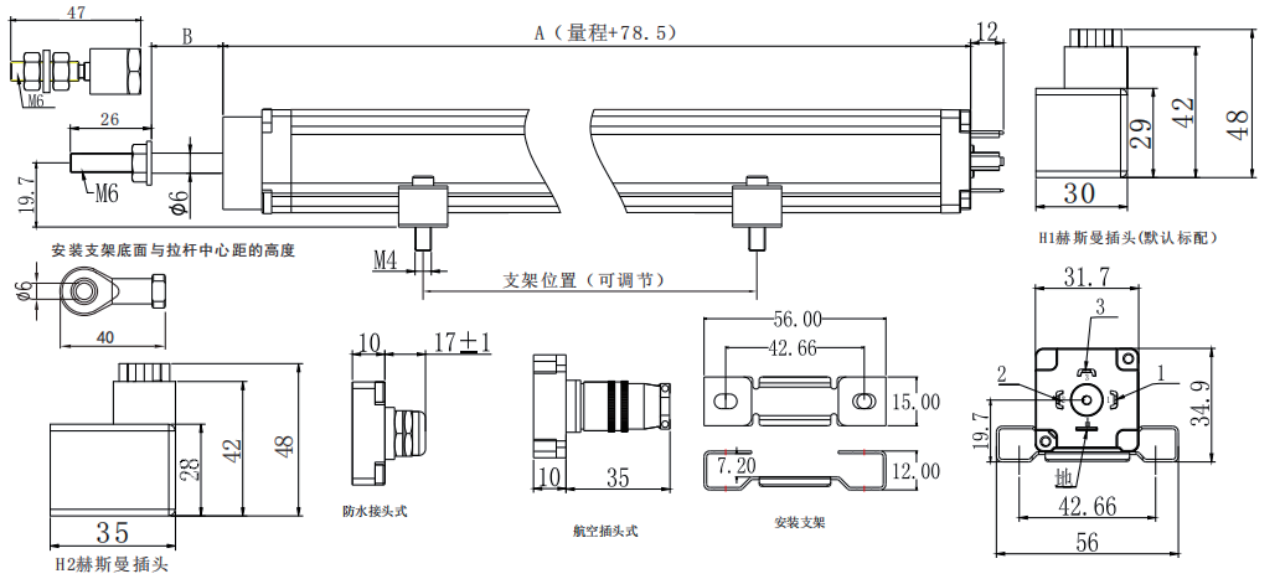

| Housing length | mm | Range+78.5 |
| Mechanical stroke | mm | Range+8 |
| Electrical stroke | mm | Range+3 |
| Repeatability | mm | 0.01 |
| Operating voltage | V | 24 |
| Maximum tensile load of tie rod | KG | 50 |
| Work Force | N | Horizontal direction<10 Vertical direction≤10 |
| Housing material | Aluminum alloy | |
| Operating temperature range | ℃ | -60-150 |
| Displacement speed | M/S | ≤10 |
| Protection level | IP65 |
| Model | Range | Model | Range | Model | Range |
|---|---|---|---|---|---|
| VK-VDS10-50 | 50mm | VK-VDS10-325 | 325mm | VK-VDS10-750 | 750mm |
| VK-VDS10-75 | 75mm | VK-VDS10-350 | 350mm | VK-VDS10-800 | 800mm |
| VK-VDS10-100 | 100mm | VK-VDS10-360 | 360mm | VK-VDS10-850 | 850mm |
| VK-VDS10-110 | 110mm | VK-VDS10-375 | 375mm | VK-VDS10-900 | 900mm |
| VK-VDS10-125 | 125mm | VK-VDS10-400 | 400mm | VK-VDS10-950 | 950mm |
| VK-VDS10-130 | 130mm | VK-VDS10-425 | 425mm | VK-VDS10-1000 | 1000mm |
| VK-VDS10-150 | 150mm | VK-VDS10-455 | 450mm | VK-VDS10-1150 | 1150mm |
| VK-VDS10-175 | 175mm | VK-VDS10-475 | 475mm | VK-VDS10-1250 | 1250mm |
| VK-VDS10-200 | 200mm | VK-VDS10-500 | 500mm | ||
| VK-VDS10-225 | 225mm | VK-VDS10-550 | 550mm | ||
| VK-VDS10-250 | 250mm | VK-VDS10-600 | 600mm | ||
| VK-VDS10-275 | 275mm | VK-VDS10-650 | 650mm | ||
| VK-VDS10-300 | 300mm | VK-VDS10-700 | 700mm |
