VK-VPS6 Series
Center protrusion for easy stress concentration. In most cases, the stress points are designed with curved surfaces. To better concentrate stress, when in use, they often contact with flat surfaces and protrusions, and can also be installed by directly fixing with screws. Widely used in electronic weighing instruments such as vehicle scales, rail scales, flat scales, cranes, and pressure testing machines.
VK-VPS6 Series
Sensor Fundamentals
ParameterUnitSpecification
Rated RangeT0-15
Output sensitivitymV/V1.0-2.0±0.01
Zero output%F.S±2
Nonlinearity%F.S0.3
Hysteresis%F.S0.1
Repeatability%F.S0.1
Creep (30 minutes)%F.S0.1
Temperature sensitivity drift%F.S./10℃0.05
Zero temperature drift%F.S./10℃0.05
Response frequencyKHz10
Material
Alloy steel
Insulation resistanceMΩ/100V DC≥5000
Operating voltageV5-15
Operating temperature range-20-80
Safe overload%R.C.150
Ultimate overload%R.C.200
Cable specificationsmΦ5*2m
Cable ultimate tensile strengthKG10

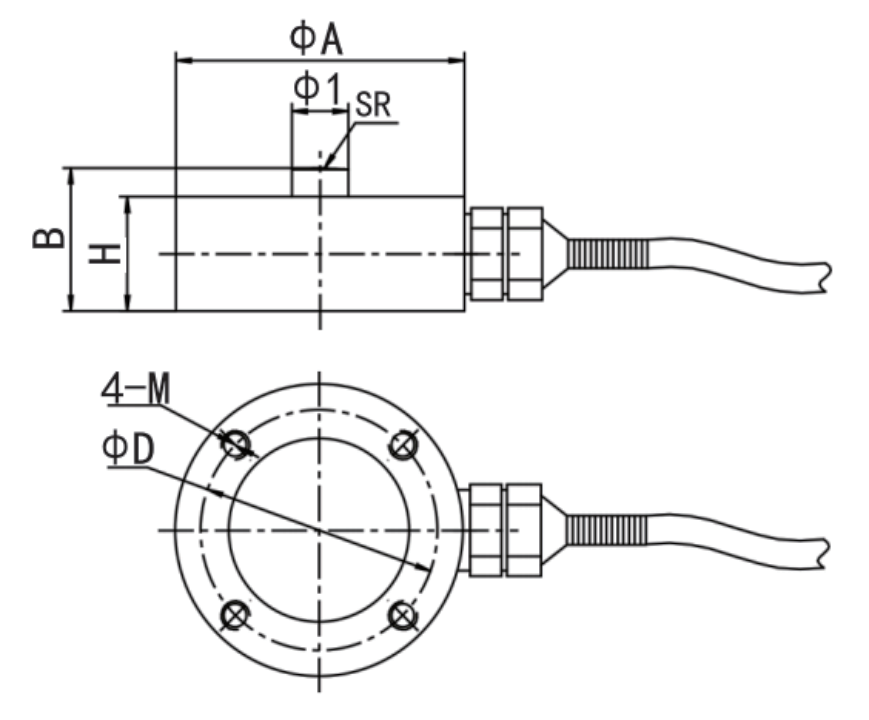

Sensor Structural Diagram

Sensor Technical Specifications
ModelSpecificationθABHθ1θDSR
VK-VPS6-0.55-50KG51252010M5SR50
VK-VPS6-10.1-1T51252010M5SR50
VK-VPS6-20.2-2T51252010M5SR50
VK-VPS6-30.3-3T51252010M5SR50
VK-VPS6-50.5-5T51252010M5SR50
VK-VPS6-60.6-6T8847421872SR150
VK-VPS6-101-10T8847421872SR150
VK-VPS6-151.5-15T8847421872SR150
