VK-VDT1 Series-VINTEKO

Home Products Rotary Torque Sensor VK-VDT1 Series

VK-VDT1 Series

This sensor has strong anti-interference capabilities, high accuracy, good stability, and is easy to install. Application range: Mainly used for the detection of products such as electric tools and pneumatic tools.

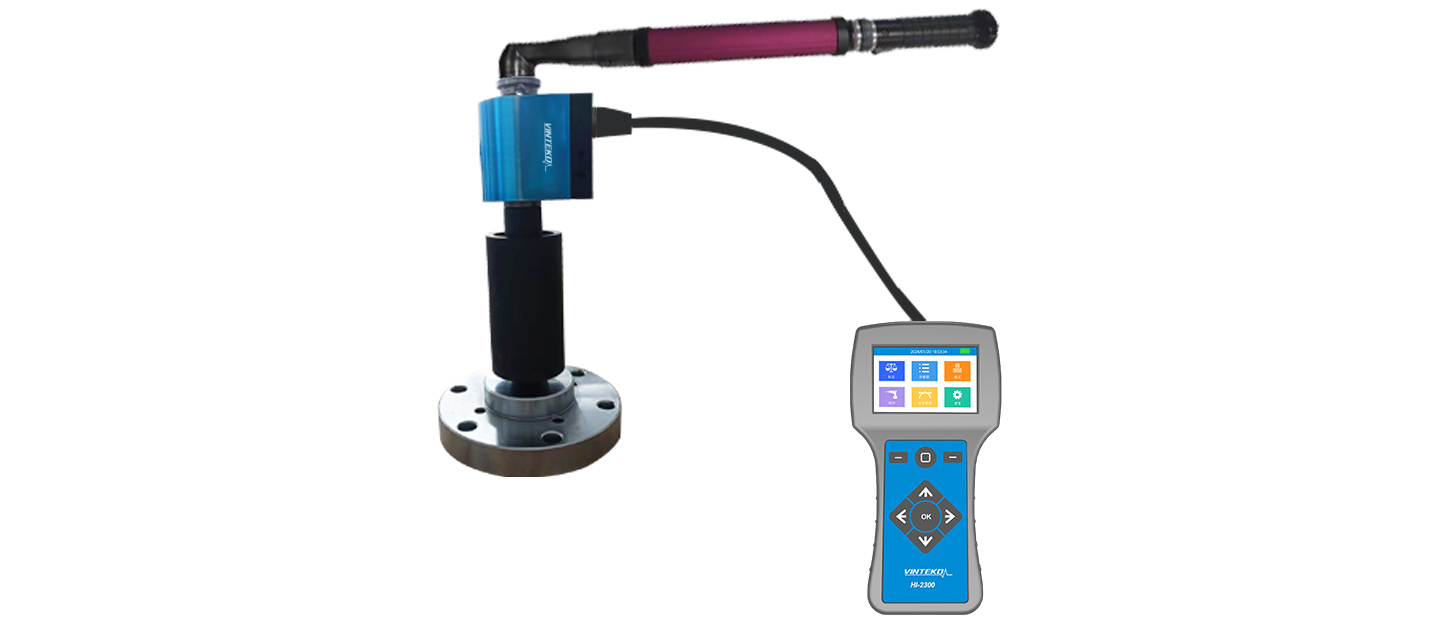

Practical Application

Sensor Fundamentals

Parameter	Unit	Specification
Rated Range	N.M	0-3000
Torque Signal	mV/V	<2.0
Accuracy Class	%F.S	±0.5
Rotational Speed Range	RPM	≤5000
Repeatability	%F.S	±0.05
Temperature Sensitivity Drift	%F.S./10℃	0.05
Zero-point Temperature Drift	%F.S./10℃	0.05
Voltage	V	5-15
Current	MA	<150
Material		Stainless Steel
Operating Environment	℃	-10-50
Response Time	MS	1
Response Frequency	KHZ	1
Safe Overload	%	150
Protection Rating (IP Rating)		IP50

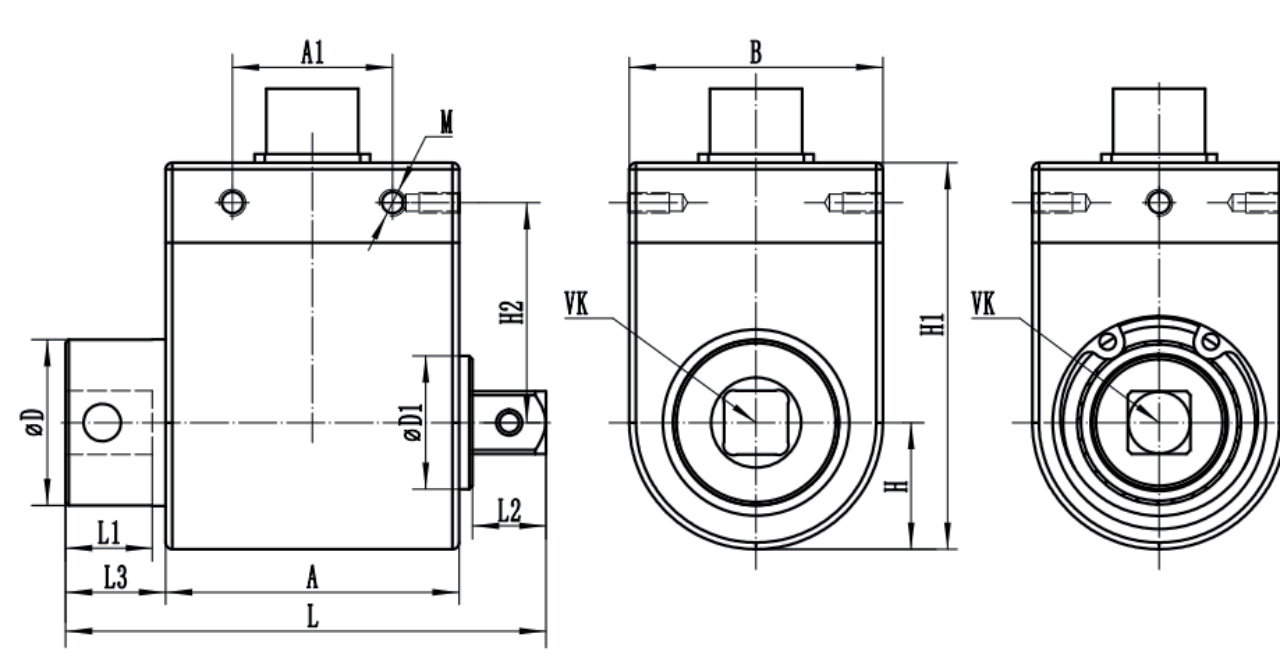

Sensor Structural Diagram

Sensor Technical Specifications

Model	Specification	VK	A	B	L	L1	L2	L3	H	H1	H2	A1
VK-VDT1-2	0.2-2NM	1/4	49	32	68	10.5	7.5	10.5	16	57	32.5	30
VK-VDT1-5	0.5-5NM	1/4	49	32	68	10.5	7.5	10.5	16	57	32.5	30
VK-VDT1-10	1-10NM	1/4	49	32	68	10.5	7.5	10.5	16	57	32.5	30
VK-VDT1-20	2-10NM	3/8	44	38	72	13	11	15	19	58	33	24
VK-VDT1-50	5-50NM	3/8	44	38	72	13	11	15	19	58	33	24
VK-VDT1-100	10-100NM	1/2	44	38	80	17	15	19	19	58	33	24
VK-VDT1-200	20-200NM	1/2	62	64	113	26	23	26	32	82	43	35
VK-VDT1-300	30-300NM	1/2	62	64	113	26	23	26	32	82	43	35
VK-VDT1-500	50-500NM	3/4	72	80	131	31	28	29	40	97	50	35
VK-VDT1-1000	100-1000NM	1	72	80	131	31	28	29	40	97	50	35
VK-VDT1-2000	200-2000NM	3/2	80	115	170	42	40	48	57.5	134	67.5	45
VK-VDT1-3000	300-3000NM	3/2	80	115	170	42	40	48	57.5	134	67.5	45
