Core Application Scenarios

VINTEKO servo press systems are designed to control, monitor, and optimize the demands of refined and intelligent pressing operations. They are widely adopted by automotive component manufacturers. The system provides comprehensive quality and process reliability assurance for production phases. Through real-time closed-loop process control, it continuously monitors production status, effectively enhances production cycle time while suppressing burr formation, and reduces defect rates at the source.

Chip Packaging and Assembly Press-Fit
the Connecting Rod Bushing

With the VINTEKO servo press, pressure and holding time can be precisely controlled to ensure an even adhesive layer, no voids, and that the chips are free of cracks or tilting, while achieving the specified bonding layer thickness.

Crimping of crimp-type pins/terminals
motors/electric drives

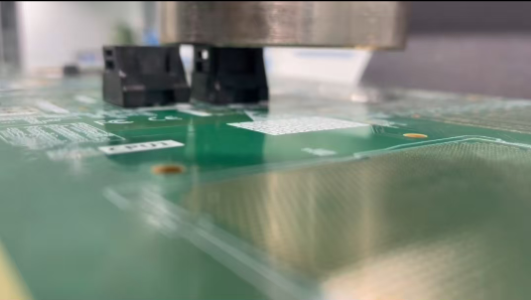

The VINTEKO servo press can precisely insert crimped pins with special structures (such as fish-eye holes, square nails, crown springs, etc.) into the metallized through-holes of printed circuit boards according to a preset force-displacement curve, forming a reliable airtight electrical and mechanical connection.

Crimping of connector assembly
electronic water pumps/oil pumps

The VINTEKO servo press inserts metal terminals into the designated positions of the connector's plastic core using a 'high-speed approach - low-speed detection - uniform-speed pressing' mode, ensuring that the connectors are pressed into the core without deformation or damage, while maintaining positional accuracy and retention strength.

Technical Advantages

Zero-defect production

Data-Driven and Full-Process Traceability

Maximizing efficiency and flexibility

Reduce overall costs

Zero-defect production

Through process monitoring, defective products are intercepted at the workstation to prevent them from entering subsequent expensive assembly or testing stages.

Data-Driven and Full-Process Traceability

The crimping curves and test results of all terminals for each connector can be linked to the product serial number and uploaded to the MES system.

Maximizing efficiency and flexibility

When changing products, you only need to run a new program without replacing the mold or making complex mechanical adjustments, perfectly supporting flexible production of multiple varieties in small batches.

Reduce overall costs

Compared to continuously running air compressors or hydraulic stations, energy consumption can be reduced by 60%-80%.
