VK-VPS8 Series

High and low, high precision, good linearity, strong resistance to eccentric load and lateral force, it can measure both pressure and tension, making it very suitable for weighing and force measurement. It has a low-profile design, convenient installation, good interchangeability, and the low-profile design can enhance resistance to eccentric loads, ensuring stable operation. It is suitable for tensile and compressive testing instruments on testing machines, as well as for automation equipment and testing fields.

Sensor Fundamentals

Parameter	Unit	Specification
Measurement range	T	0-1000
Output sensitivity	mV/V	2.0
Zero output	%F.S	±1
Repeatability	%F.S	0.03
Temperature sensitivity drift	%F.S./10℃	0.03
Zero temperature drift	%F.S./10℃	0.03
Voltage	V	5-15
Material		Alloy steel
Operating environment	℃	-20-80
Response frequency	KHZ	10
Safe overload	%	150
Ultimate overload	%	200
Cable ultimate tensile strength	KG	10
Cable specifications	m	Φ5*3m

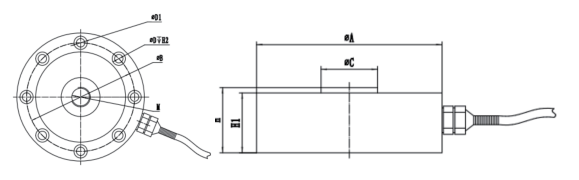

Sensor Technical Specifications

Model	Specifications	θA	θB	θC	M	H	H1	H2	θD	θD1
VK-VPS8-0.1	100-1000KG	74	63	24	M16*1.5	34	30	7.2	8-θ9	8-θ6
VK-VPS8-1	0.1-1T	105	89	29	M16*1.5	37	34	7.2	8-θ11	8-θ7
VK-VPS8-2	0.2-2T	105	89	29	M16*1.5	37	34	7.2	8-θ11	8-θ7
VK-VPS8-3	0.3-3T	105	89	29	M16*1.5	37	34	7.2	8-θ11	8-θ7
VK-VPS8-5	0.5-5T	105	89	29	M16*1.5	37	34	7.2	8-θ11	8-θ7
VK-VPS8-10	1-10T	120.6	101.8	39	M32*1.5	53.5	41	10.5	8-θ14	8-θ9
VK-VPS8-20	2-20T	120.6	101.8	39	M32*1.5	53.5	41	10.5	8-θ14	8-θ9
VK-VPS8-30	3-30T	141	116.8	50.4	M40*1.5	57.2	50.8	11	8-θ18	8-θ11
VK-VPS8-50	5-50T	208	174	95	M64*3	70	*	15	16-θ20	16-θ13
VK-VPS8-80	8-80T	208	174	95	M64*3	70	*	15	16-θ20	16-θ13
VK-VPS8-100	10-100T	280	230	136	M76*3	90	*	20	16-θ26	16-θ17
VK-VPS8-200	20-200T	280	230	136	M76*3	90	*	20	16-θ26	16-θ17
VK-VPS8-300	30-300T	360	300	190	M100*3	110	*	25	20-θ40	20-θ25
VK-VPS8-400	40-400T	360	300	190	M100*3	110	*	25	20-θ40	20-θ25
VK-VPS8-500	50-500T	420	370	266	M130*4	140	*	30	20-θ42	20-θ28
VK-VPS8-600	60-600T	420	370	266	M130*4	140	*	30	20-θ42	20-θ28
VK-VPS8-800	80-800T	500	440	330	M200*4	170	*	30	20-θ42	20-θ28
VK-VPS8-1000	100-1000T	500	440	330	M200*4	170	*	30	20-θ42	20-θ28
