| 参数 | 单位 | 规格型号 |
|---|---|---|
| 量程范围 | T | 0-1000 |
| 输出灵敏度 | mV/V | 2.0 |
| 零点输出 | %F.S | ±1 |
| 重复性精度 | %F.S | 0.03 |
| 温度灵敏度漂移 | %F.S./10℃ | 0.03 |
| 零点温度漂移 | %F.S./10℃ | 0.03 |
| 电压 | V | 5-15 |
| 材质 | 合金钢 | |
| 工作环境 | ℃ | -20-80 |
| 响应频率 | KHZ | 10 |
| 安全过载 | % | 150 |
| 极限过载 | % | 200 |
| 线缆极限拉力 | KG | 10 |
| 防护等级 | θ5*3M |

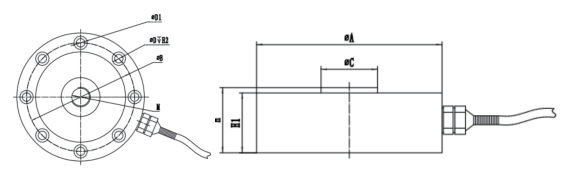

| 型号 | 规格参数 | θA | θB | θC | M | H | H1 | H2 | θD | θD1 |
|---|---|---|---|---|---|---|---|---|---|---|
| VK-VPS8-0.1 | 100-1000KG | 74 | 63 | 24 | M16*1.5 | 34 | 30 | 7.2 | 8-θ9 | 8-θ6 |
| VK-VPS8-1 | 0.1-1T | 105 | 89 | 29 | M16*1.5 | 37 | 34 | 7.2 | 8-θ11 | 8-θ7 |
| VK-VPS8-2 | 0.2-2T | 105 | 89 | 29 | M16*1.5 | 37 | 34 | 7.2 | 8-θ11 | 8-θ7 |
| VK-VPS8-3 | 0.3-3T | 105 | 89 | 29 | M16*1.5 | 37 | 34 | 7.2 | 8-θ11 | 8-θ7 |
| VK-VPS8-5 | 0.5-5T | 105 | 89 | 29 | M16*1.5 | 37 | 34 | 7.2 | 8-θ11 | 8-θ7 |
| VK-VPS8-10 | 1-10T | 120.6 | 101.8 | 39 | M32*1.5 | 53.5 | 41 | 10.5 | 8-θ14 | 8-θ9 |
| VK-VPS8-20 | 2-20T | 120.6 | 101.8 | 39 | M32*1.5 | 53.5 | 41 | 10.5 | 8-θ14 | 8-θ9 |
| VK-VPS8-30 | 3-30T | 141 | 116.8 | 50.4 | M40*1.5 | 57.2 | 50.8 | 11 | 8-θ18 | 8-θ11 |
| VK-VPS8-50 | 5-50T | 208 | 174 | 95 | M64*3 | 70 | * | 15 | 16-θ20 | 16-θ13 |
| VK-VPS8-80 | 8-80T | 208 | 174 | 95 | M64*3 | 70 | * | 15 | 16-θ20 | 16-θ13 |
| VK-VPS8-100 | 10-100T | 280 | 230 | 136 | M76*3 | 90 | * | 20 | 16-θ26 | 16-θ17 |
| VK-VPS8-200 | 20-200T | 280 | 230 | 136 | M76*3 | 90 | * | 20 | 16-θ26 | 16-θ17 |
| VK-VPS8-300 | 30-300T | 360 | 300 | 190 | M100*3 | 110 | * | 25 | 20-θ40 | 20-θ25 |
| VK-VPS8-400 | 40-400T | 360 | 300 | 190 | M100*3 | 110 | * | 25 | 20-θ40 | 20-θ25 |
| VK-VPS8-500 | 50-500T | 420 | 370 | 266 | M130*4 | 140 | * | 30 | 20-θ42 | 20-θ28 |
| VK-VPS8-600 | 60-600T | 420 | 370 | 266 | M130*4 | 140 | * | 30 | 20-θ42 | 20-θ28 |
| VK-VPS8-800 | 80-800T | 500 | 440 | 330 | M200*4 | 170 | * | 30 | 20-θ42 | 20-θ28 |
| VK-VPS8-1000 | 100-1000T | 500 | 440 | 330 | M200*4 | 170 | * | 30 | 20-θ42 | 20-θ28 |
